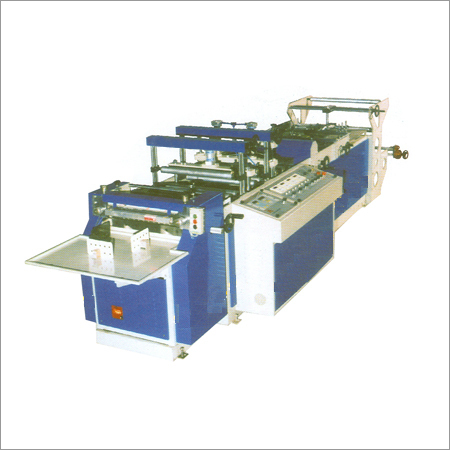

Three Side Pouch Making Machine

Three Side Pouch Making Machine
Three Side Pouch Making Machine
Product Code : 05
Trade Information
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA)
  • Supply Ability
  • 4
  • Delivery Time
  • Months
  • Certifications
  • no
Product Description

Three Side Pouch Making Machine

Model

Jet 400 Servo

Indexing Drive

Servo

Pouch Width

50- 400 mm

Pouch Length

56- 600 mm

Production Speed Cycles/ Min.

150

Polymer Processing Capability

Polyester/ BOPP Laminates

Basic Machine

5.5 kw.

Three Side Seal

6.5 kw.

Off Wind Reel Diameter

600 mm

Foot Print L x W x H

5000 x 1500 x 1200 mm

Main Motor

Thyristor Controlled


  • Depending on materials, thickness and draw length
  • Attachment requires compressed air connection
  • Stepper Driven available

Optional Attachments

  • Double Gusset
  • On line 'D' Punch system
  • Double side sheet insertion
  • On line Zipper insertion
  • Zipper Sealer

Standard Features

  • Machine sturdy rigid and modular design
  • No foundation required
  • Microprocessor based controlled
  • Draw length setting and batch counting
  • setting directly from the panel
  • Gravity loaded dancer mechanism
  • Digital temperature controllers
  • Photoregistration mark scanner film index using stepper or servo motor
  • Corrugated film delivery
  • Settable pick- off for finish product and conveying using belt delivery on stacking tray.
